Ford Focus 2 and C-Max I Module Diagnostics and Configuration

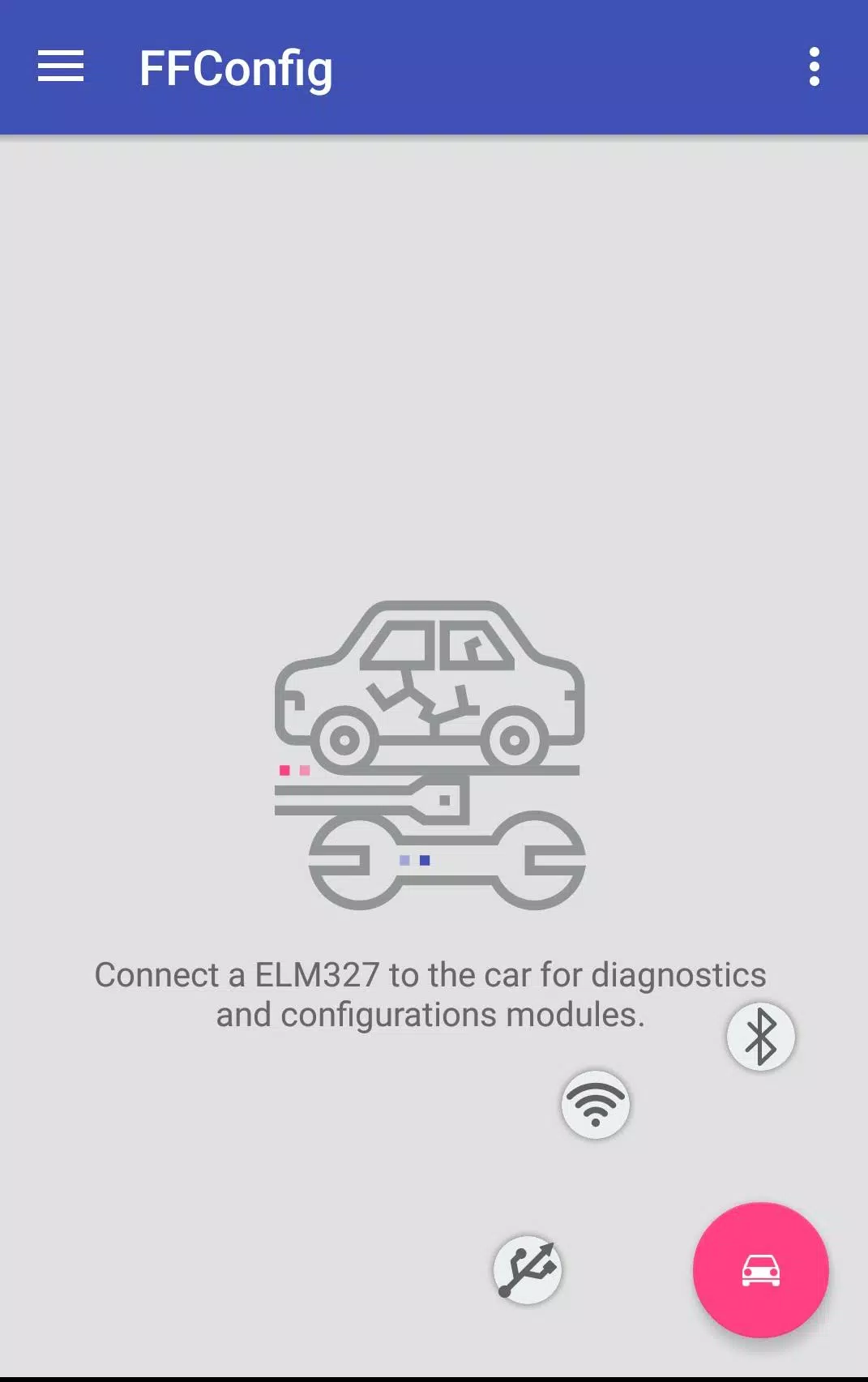

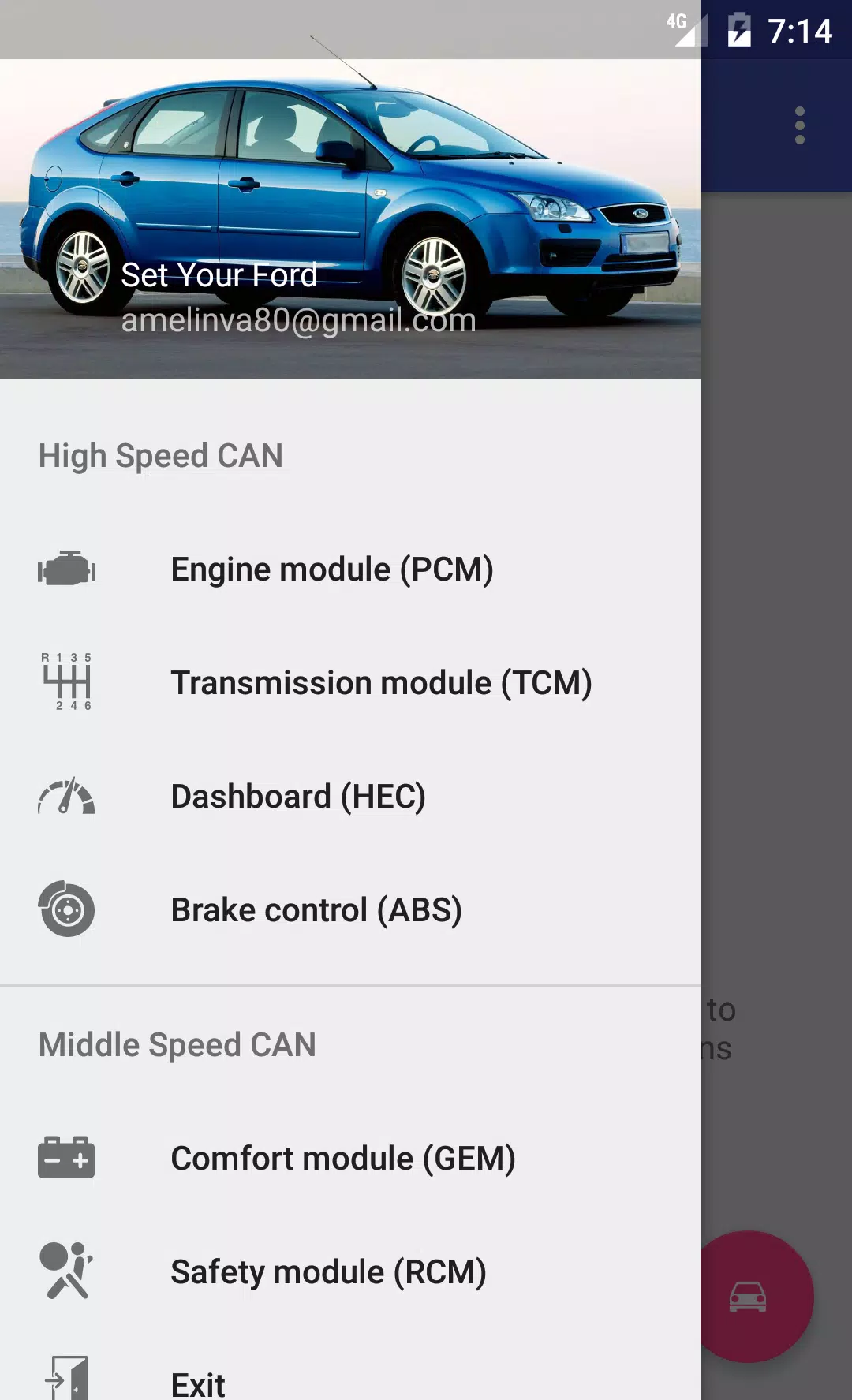

Connect your Ford Focus 2 or C-Max using an ELM327 or ELS27 interface to access and interact with the following CAN-bus modules:

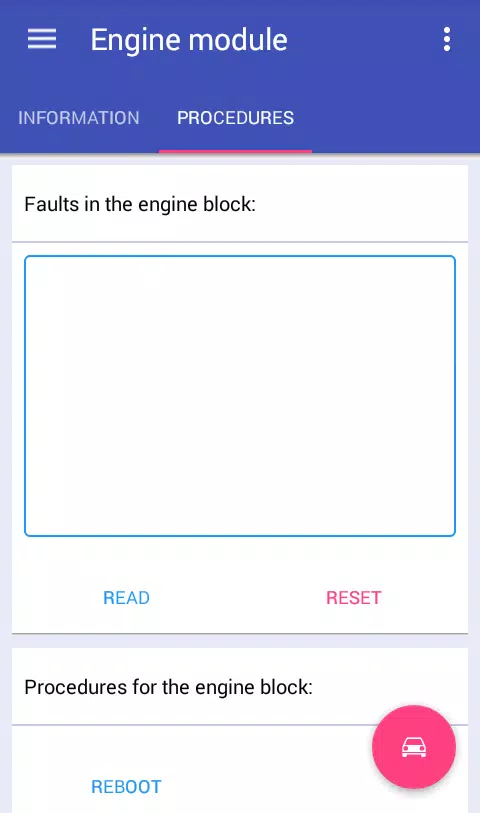

Engine Control Module (ECM): Retrieve module information, read and clear diagnostic trouble codes (DTCs), reboot the module, and reset the long-term fuel trim (KAM)*. Supported ECUs include:
- ESU-411/418 (1.8 125hp/2.0 145hp)
- SIM28/29 (1.4 80hp/1.6 100hp/115hp)
- ESU-121/131 (1.8 120hp/2.0 145hp)

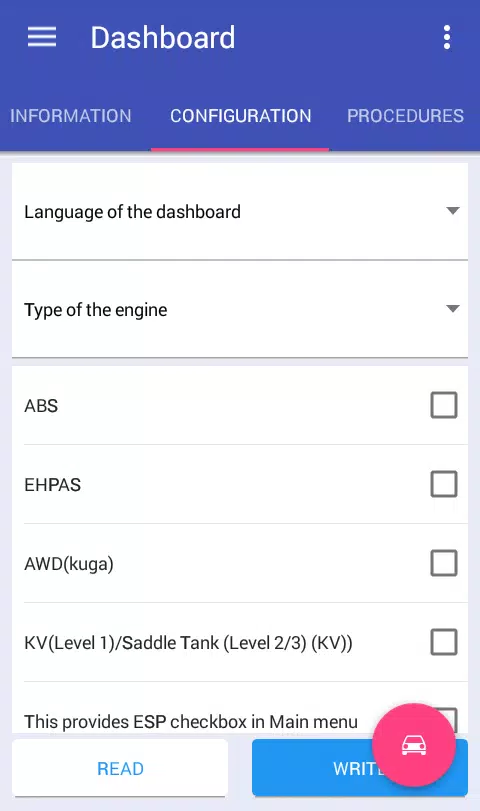

Instrument Cluster (IPC): Access module information, read and clear DTCs, configure module settings, reboot the module, and adjust/correct the odometer*.
Brake Control Module (BCM): Obtain module information, read and clear DTCs, configure module settings, reboot the module, reset the Dynamic Stability System (DDS) calibration, and perform brake bleeding*.
Body Control Module (BCM): Retrieve module information, read and clear DTCs, configure module settings*, and reboot the module.
Airbag Control Module (ACM): Access module information, read and clear DTCs, configure module settings, reboot the module, and clear crash data*.
Transmission Control Module (TCM): Retrieve module information, read and clear DTCs, and reset KAM*.
Climate Control Module (CCM): Obtain module information, read and clear DTCs.
Audio Control Module: Access module information, read and clear DTCs, and retrieve the radio code (for M-series modules)*.
*Indicates features available only in the full version of the software.
ELM327 Adapter Modification:
For complete application functionality and access to additional modules, a minor modification to your ELM327 adapter may be necessary. Instructions can be found here: Http://forffclub.narod.ru/index/0-2
ELS27 Interface:
Purchase an ELS27 interface at: https://els27.ru/. For ELS27USB, set the baud rate to 38400. For ELS27BT, use the ELS27 Baudrate utility to set the baud rate to 2,000,000.
